The LZW45 Inovelli RGBTW Smart LED Strip is the first Z-Wave enabled individually addressable lightstrip that works with many different hubs and gateways and allows remote control from anywhere in the world.

Overview

Make: Inovelli
Model #: LZW45
Generation: First
Years Produced: November 2020 - Present
Status: In-Market
Important Docs:  Product Manual, ETL Listing Info (Link Coming Soon)

Kit Specs and Certifications

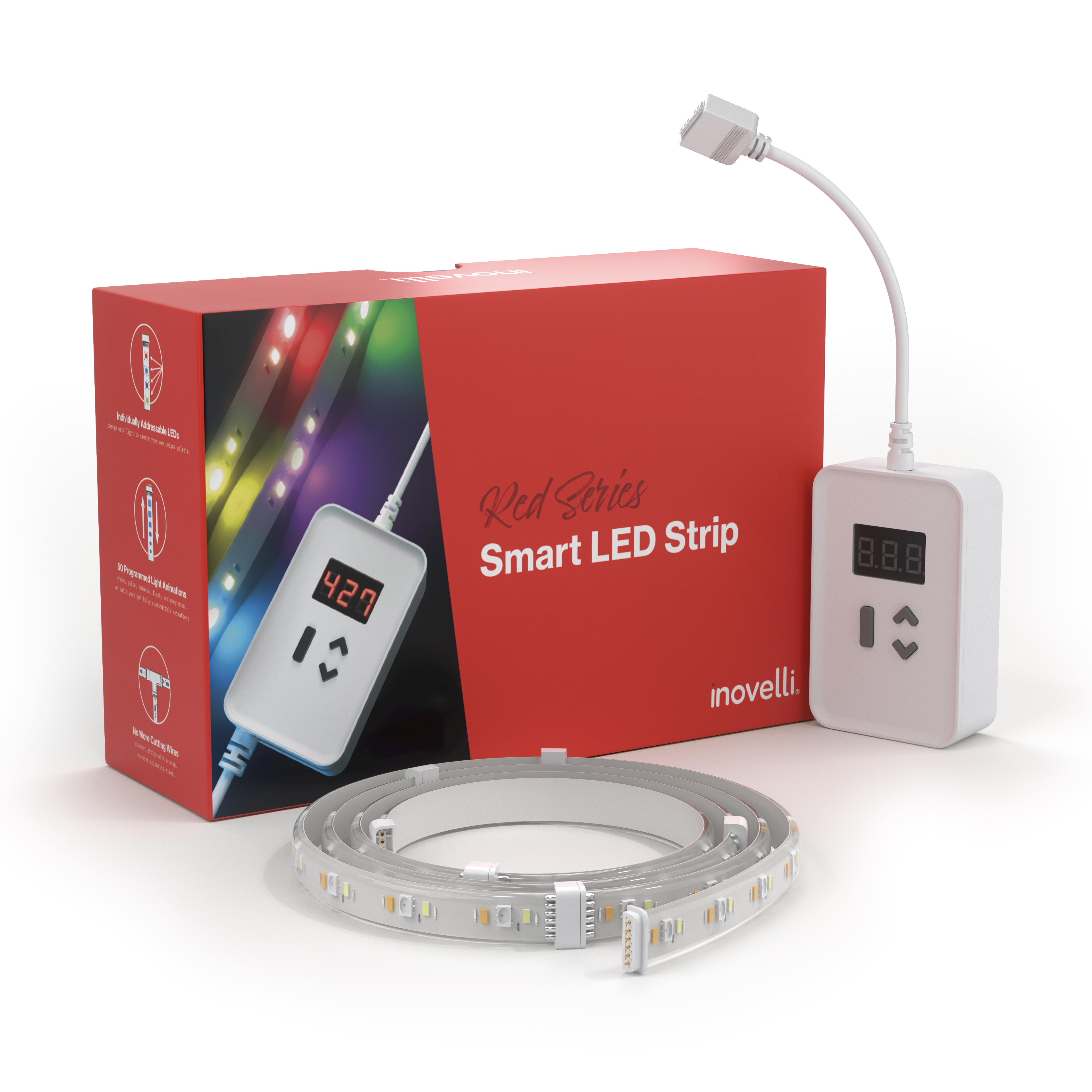

What's in the Box

  1. 5x - 1 foot LED Strips (w/adhesive tape on the back)
  2. 2x - 6 inch LED Strips (w/adhesive tape on the back)
  3. Z-Wave Controller
  4. Power Adapter

Specifications (Z-Wave Controller)

  1. Technology: Z-Wave Plus
  2. Z-Wave Chip: 700 Series
  3. Signal Frequency: 908.42 MHz
  4. Range: Up to 100 meters line of sight between the Wireless Controller (Hub) and the closest Z-Wave Module
  5. Dimensions: Please see below diagram
  6. Dimensions for Included Power Bank: Cord is 10 feet long

Specifications (LED Strips)

  1. Individually Addressable LED's: Yes
  2. LED Type: Lightstrip (3x LED's per inch = 1x Pixel + 1x Warm White LED + 1x Cool White LED) = 24 LED's per foot
  3. Pixel Type: WS2815
  4. Lumens: 1600 (6ft) or 267 lm/foot (lumens will drop after 16ft without an additional power source)
  5. Color Range:  Full RGB (Red, Green, Blue) Color & and Tunable White
  6. Temperature Range:  2700k to 6500k (Warm to Cold White)
  7. CRI/Ra Value: 80
  8. R9: 0
  9. Wattage: 20W
  10. Power: 120V AC, 60 Hz, 310mA
  11. Operating Temperature: 32-104 °F (0-40 °C)
  12. Maximum Length (not including extension cords): 16 feet (future firmware updates will lengthen this)
  13. Indoor/Outdoor Use: Indoor use only.

Certifications

  1. ETL Listed: 5003280
  2. FCC Certified: 2AB2QLZW45
  3. IC Certified: 10256A-LZW45
  4. Z-Wave Plus Certified: In Progress
Note about IC:
  1. IC site does not have a direct URL for devices -- it will take you to a search bar. Type the IC # in the, "Certification Number" section. Please see the PDF at the bottom of the article for a screenshot of the IC website.

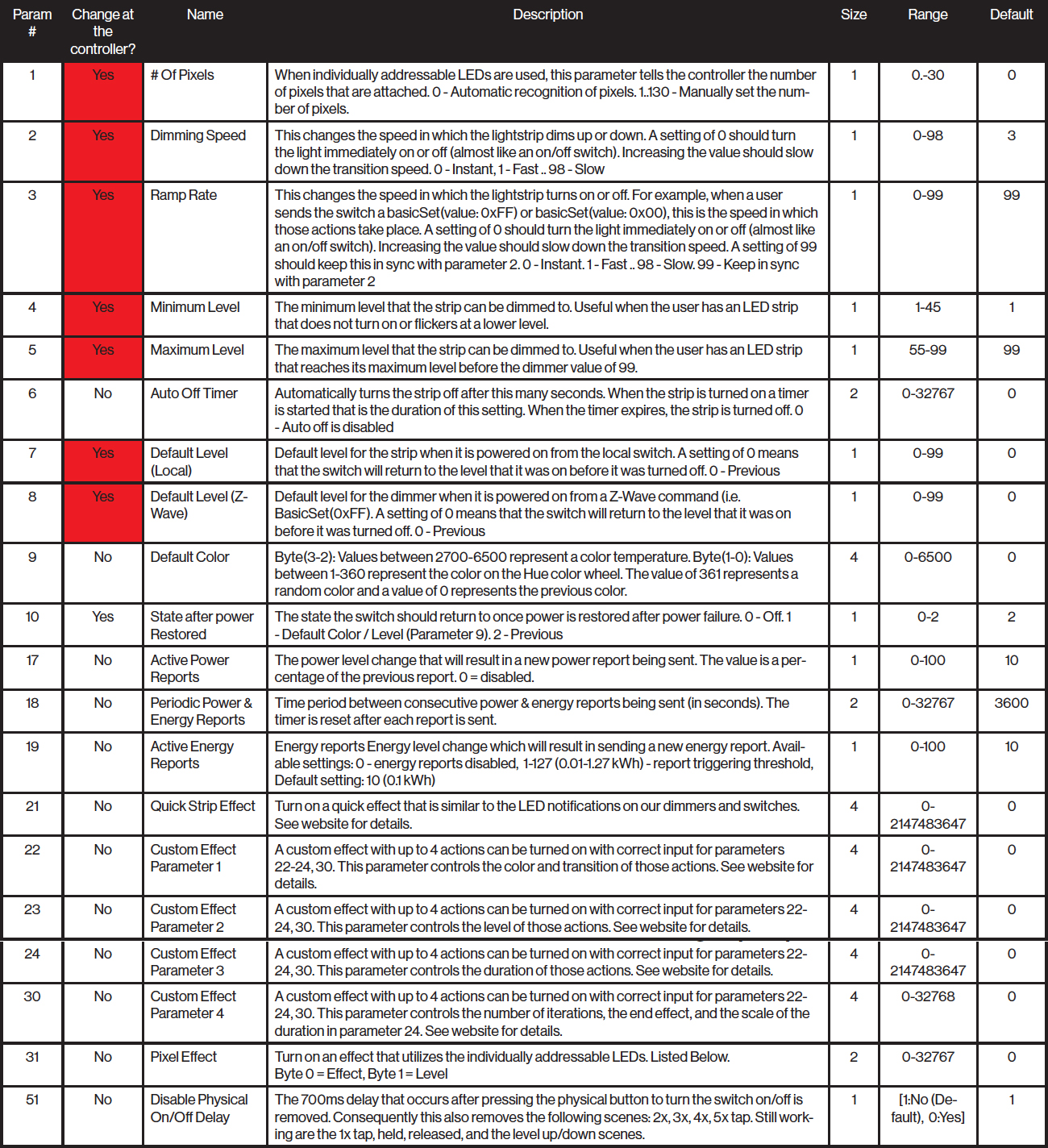

Advanced Settings

Depending on the version, this lightstrip supports many advanced settings as shown below. Please reach out for the latest firmware file if you'd like to upgrade your firmware* ( NOTE: this requires a special tool that needs to be purchased separately unless your Hub supports Over-the-Air upgrades).

NOTE: Click on the chart to make it larger if you can't read it.

Current Firmware Version: 1.19

Compatible Hubs / Gateway's

Please note, these are subject to change -- please let us know if there is a hub that you don't see on the list that needs to be added, or one that's on the list that needs to be removed.
  1. Fibaro Home Center 2
  2. Fibaro Home Center Lite
  3. Home Assistant
  4. HomeSeer
  5. Hubitat
  6. openHAB
  7. Open Z-Wave
  8. SmartThings
  9. Zipato ZipaTile
If your hub is not listed above, please get in touch with us before buying the bulb to avoid the hassle of returns.

How about Alexa or Google Home?
Smart speakers are NOT Z-Wave hubs so they won't work directly with any Z-Wave devices. But you can use a compatible Z-Wave hub with smart speaker integration to control your dimmer with voice control. These include the Fibaro hubs, Hubitat, SmartThings, and Wink.
